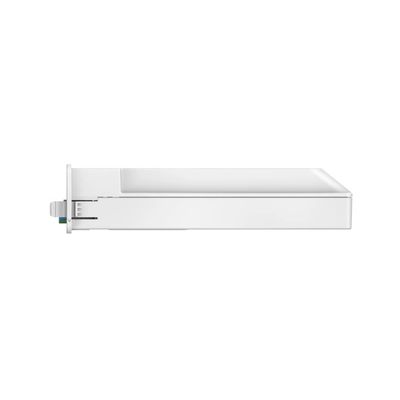

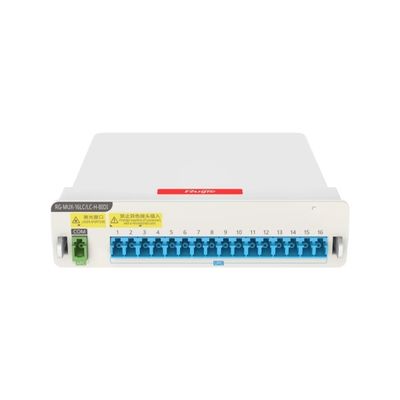

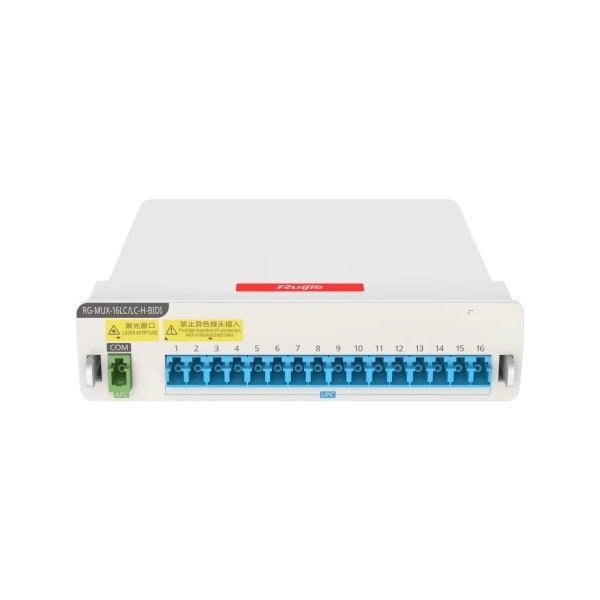

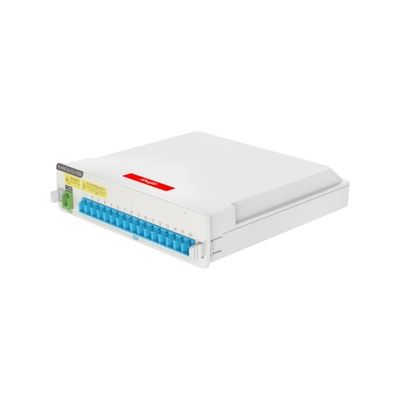

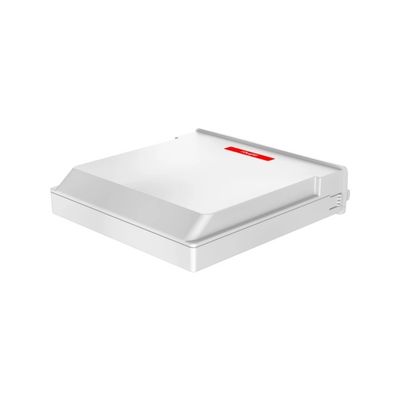

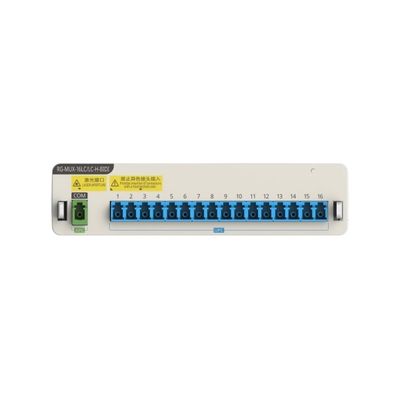

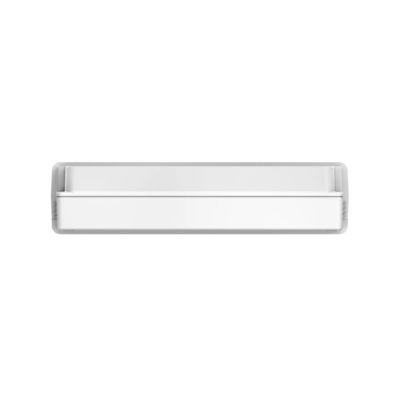

16-Channel BIDI Fiber Mux High-Density CWDM / DWDM Ruijie Switch Plug Play

Large Image : 16-Channel BIDI Fiber Mux High-Density CWDM / DWDM Ruijie Switch Plug Play

Product Details:

Brand Name:	Ruijie
Model Number:	RG-MUX-16LC/LC-H-BIDI

Contact Now

16-Channel BIDI Fiber Mux High-Density CWDM / DWDM Ruijie Switch Plug Play

Description

Product Model:	RG-S5750-E	Vlan Support:	Yes
Management Interface:	Console, Telnet, SSH, Web	Dimensions:	440mm X 44mm X 220mm
Port Type:	10/100/1000Base-T	Power Supply:	AC 100-240V, 50/60Hz
Number Of Ports:	48	Weight:	3.5kg
Operating Temperature:	0°C To 45°C	Switching Capacity:	176Gbps
Warranty:	5 Years	Humidity:	10% To 90% (non-condensing)
Power Consumption:	Max. 70W	Forwarding Rate:	130.95Mpps
Highlight:	High-Density BIDI Fiber Mux , CWDM/DWDM BIDI Fiber Mux

16-Channel BIDI Fiber Mux High-Density CWDM/DWDM Ruijie Switch Plug & Play

The Ruijie RG-MUX-16LC/LC-H-BIDI is a high-density fiber optic multiplexer (Mux) designed to maximize fiber efficiency in data centers, telecom networks, and enterprise environments. Supporting 16-channel bidirectional (BIDI) transmission over a single fiber, this CWDM/DWDM Ruijie switch reduces cabling costs while delivering scalable bandwidth for high-speed applications.

Key Features & Benefits

16-Channel BIDI Multiplexing - Transmits 16 bidirectional signals over a single fiber, saving up to 50% on fiber infrastructure.
CWDM & DWDM Compatibility - Flexible deployment for both coarse (CWDM) and dense (DWDM) wavelength division multiplexing, supporting distances up to 80km+.
Plug-and-Play Operation - No configuration needed; works seamlessly with Ruijie switches, routers, and third-party optical gear.
Industrial-Grade Reliability - Passive, no power required, with a rugged design for stable performance in harsh conditions (-40°C to 70°C).
High-Density LC Ports - Compact form factor with 16 dual-fiber LC connectors, ideal for space-constrained deployments.

Technical Specifications

Parameter	Specification
Channels	16 (BIDI)
Wavelength Support	CWDM (1270-1610nm) / DWDM (C-band)
Connector Type	Dual LC/UPC
Insertion Loss	≤ 4.0 dB
Operating Temp.	-40°C to +70°C
Dimensions (WxDxH)	19" rack-mountable (1U)
Compatibility	Ruijie switches, routers, SAN, 5G fronthaul/backhaul

Why Choose This Ruijie Switch?

Cost-Efficient Fiber Savings - Slashes fiber usage while expanding network capacity.

Future-Ready Scalability - Easily integrates with existing Ruijie networking solutions.

Zero Maintenance - Passive design ensures no downtime or power failures.

Ideal for data center interconnects (DCI), 5G transport, and enterprise backbone networks, the Ruijie RG-MUX-16LC/LC-H-BIDI is a smart investment for high-performance optical networking. Contact us today for pricing and deployment support!
