High-Performance Ruijie Switch RG-S6990-64OC2XS - 100G Data Center Low Latency

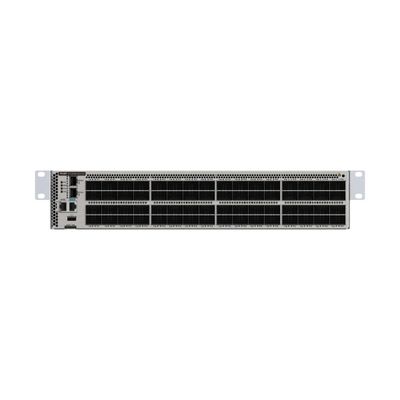

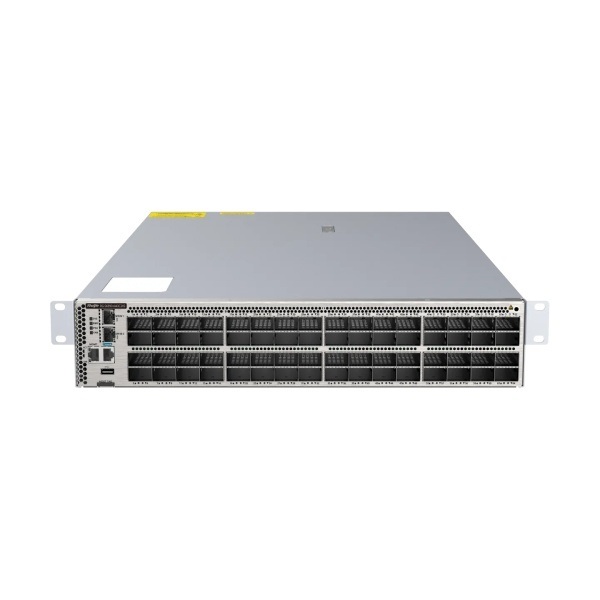

Large Image : High-Performance Ruijie Switch RG-S6990-64OC2XS - 100G Data Center Low Latency

Product Details:

Brand Name:	Ruijie
Model Number:	RG-S6990-64OC2XS

Contact Now

High-Performance Ruijie Switch RG-S6990-64OC2XS - 100G Data Center Low Latency

Description

Operating Temperature:	0°C To 45°C	Power Supply:	AC 100-240V, 50/60Hz
Port Type:	10/100/1000Base-T	Switching Capacity:	176Gbps
Product Model:	RG-S5750E	Dimensions:	440 X 44 X 220 Mm
Power Consumption:	Max. 60W	Weight:	3.5 Kg
Forwarding Rate:	130.95Mpps	Uplink Port:	4 X 10G SFP+
Vlan Support:	4096	Product Type:	Layer 2 Switch
Port Number:	48	Mac Address Table Size:	16K
Highlight:	RG-S6990-64OC2XS Ruijie Switch , 100G Data Center Ruijie Switch

High-Performance Ruijie Switch RG-S6990-64OC2XS - 100G Data Center & Low Latency

The Ruijie RG-S6990-64OC2XS is an advanced high-density 100G data center switch designed for ultra-low latency, high-throughput networking, and scalable cloud environments. Ideal for AI/ML workloads, HPC (High-Performance Computing), and enterprise core networks, this switch delivers cutting-edge performance, intelligent automation, and carrier-grade reliability.

Key Features & Benefits

64x 100G QSFP28 Ports - Supports high-speed data transfer with flexible 100G/40G/25G/10G configurations for adaptable deployments.
Ultra-Low Latency (<1μs) - Optimized for financial trading, AI training, and storage networks requiring real-time responsiveness.
Data Center Optimized - Features VXLAN/EVPN, RoCEv2 (RDMA support), and ECMP load balancing for seamless scalability.
Smart Telemetry & Cloud Management - Enables real-time monitoring, predictive analytics, and integration with RIIL/OpenStack/SDN controllers.
Redundant & Energy Efficient - Hot-swappable dual power supplies (80+ Platinum), smart cooling, and VSF virtualization for high availability.

Technical Specifications (Key Parameters)

Category	Specifications
Port Density	64x 100G QSFP28 (breakout to 25G/10G)
Switching Capacity	12.8 Tbps
Forwarding Rate	9.52 Bpps
Latency	<1μs (cut-through)
Virtualization	VSF (up to 8 devices)
Security	ACL, MACsec, Anti-DDoS

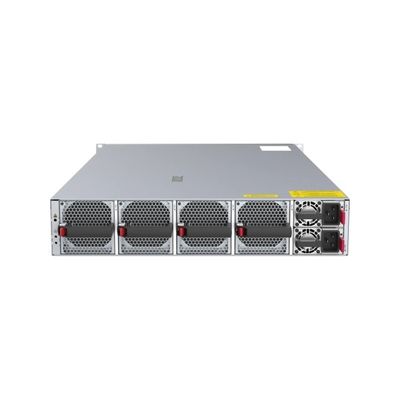

Power Supply	2+2 redundant (2000W)
Cooling	Front-to-rear, variable-speed fans

Ideal Use Cases

Cloud & Hyperscale Data Centers - High-bandwidth spine/leaf architectures.
AI/ML & HPC Clusters - Lossless RoCEv2 for GPU/CPU communication.
Enterprise Core Networks - Carrier-grade reliability for critical operations.
