Ruijie 800G OSFP-2DR4-L Optical Module 800Gbps Speed OSFP MSA Compliance Low Power For Data Centers

Large Image : Ruijie 800G OSFP-2DR4-L Optical Module 800Gbps Speed OSFP MSA Compliance Low Power For Data Centers

Product Details:

Brand Name:	Ruijie
Model Number:	800G-OSFP-2DR4-L

Contact Now

Ruijie 800G OSFP-2DR4-L Optical Module 800Gbps Speed OSFP MSA Compliance Low Power For Data Centers

Description

Ports:	48 X 10/100/1000Base-T RJ45 Ports, 4 X 10G SFP+ Ports	Qos Support:	8 Queues Per Port
Operating Temperature:	0℃~45℃	Power Consumption:	Max. 60W
Switching Capacity:	176Gbps	Forwarding Rate:	130.95Mpps
Vlan Support:	4096 VLANs	Dimensions:	440 X 44 X 380mm
Humidity:	5%~95% (non-condensing)	Model:	RG-S5750E-H
Weight:	5.5kg	Power Supply:	AC 100-240V, 50/60Hz
Type:	Layer 3 Switch	Mac Address Table Size:	32K
Highlight:	OSFP-2DR4-L Optical Module , Data Centers Optical Module , OSFP MSA Compliance Optical Module

Ruijie 800G OSFP-2DR4-L Optical Module 800Gbps Speed OSFP MSA Compliance & Low Power For Data Centers

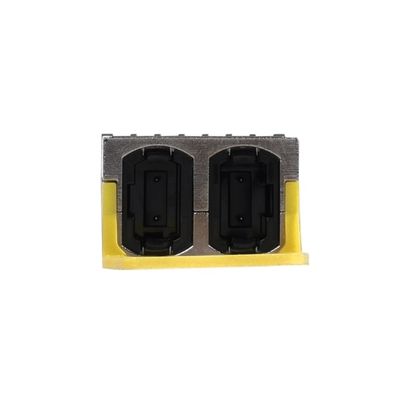

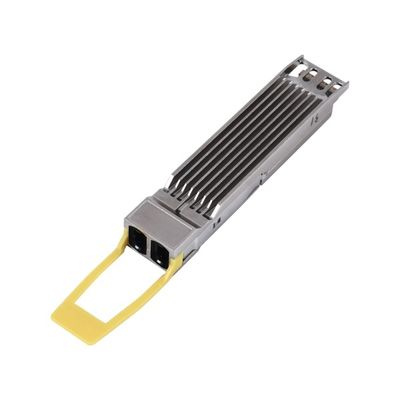

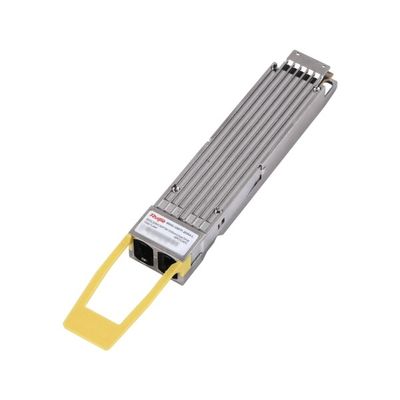

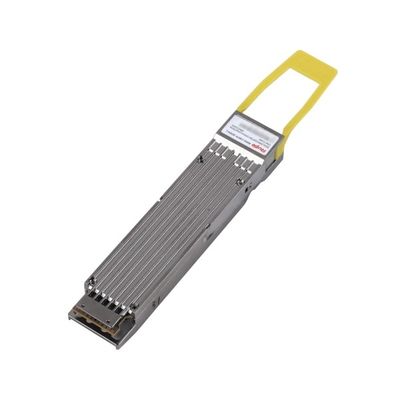

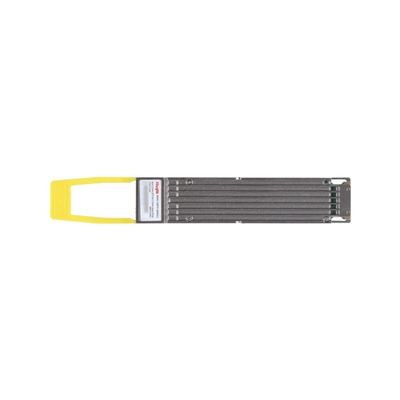

The Ruijie 800G OSFP-2DR4-L is a next-generation 800G optical transceiver designed for ultra-high-speed data center networks, AI/ML clusters, and high-performance computing (HPC) environments. Built with OSFP (Octal Small Form Factor Pluggable) technology, this module delivers 800Gbps Ethernet speeds while ensuring low power consumption, high port density, and reliable performance.

Key Features & Benefits

800Gbps Data Rate - Supports 8x100G lanes for high-bandwidth applications, ideal for AI training, cloud computing, and hyperscale data centers.
OSFP MSA Compliance - Ensures compatibility with major network switches and routers, offering seamless integration.
2DR4 MPO-16/APC Interface - Enables flexible 4x200G or 8x100G breakout configurations over OM4 multimode fiber (up to 500m).
Low Power Design - Optimized for energy efficiency, reducing operational costs in large-scale deployments.
Digital Diagnostics Monitoring (DDM) - Real-time monitoring of temperature, voltage, and optical power for proactive maintenance.
Hot-Swappable & High-Density - OSFP form factor allows for greater port density in 1U switches, maximizing rack space.

Technical Specifications

Parameter	Specification
Form Factor	OSFP
Data Rate	800Gbps (8x100G)
Wavelength	850nm (MM)
Fiber Type	OM4 Multimode
Max Distance	500m
Connector Type	MPO-16/APC
Power Consumption	< 18W (typical, varies by usage)
Operating Temp.	0°C to 70°C
Compliance	IEEE 802.3ck, OSFP MSA

Ideal Use Cases

AI/GPU Clusters - High-speed interconnects for NVIDIA InfiniBand and RoCE networks.
Cloud Data Centers - Spine-leaf architecture for scalable, low-latency connectivity.
High-Frequency Trading (HFT) - Ultra-low-latency financial networks.

Why Choose Ruijie?

Ruijie Networks provides cost-effective, high-performance networking solutions with strong local support in China and global markets. The 800G OSFP-2DR4-L ensures future-proof scalability for next-gen data centers.
