High-Performance 10G/25G/40G Ports VSU Virtualization Ruijie Switch For Enterprise Networks

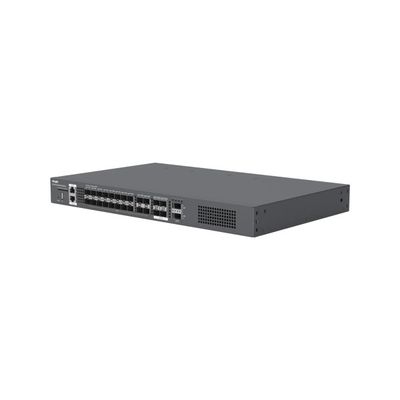

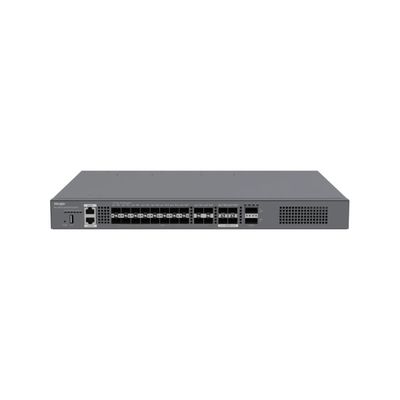

Large Image : High-Performance 10G/25G/40G Ports VSU Virtualization Ruijie Switch For Enterprise Networks

Product Details:

Brand Name:	Ruijie
Model Number:	RG-S6120-20XS4VS2QXS-L

Contact Now

High-Performance 10G/25G/40G Ports VSU Virtualization Ruijie Switch For Enterprise Networks

Description

Poe Support:	No	Layer:	Layer 2
Switching Capacity:	56Gbps	Dimensions:	440 X 220 X 44 Mm
Vlan Support:	Yes	Ports:	24 X 10/100/1000Base-T Ports
Forwarding Rate:	41.67Mpps	Power Supply:	AC 100-240V, 50/60Hz
Stacking Support:	Yes	Weight:	2.5kg
Qos Support:	Yes	Management Interface:	Web, CLI, SNMP
Operating Temperature:	0°C To 50°C	Model:	RG-S2910G-E
Highlight:	High Performance 10G Ports Switch , Virtualization 25G/40G Ports Switch

High-Performance 10G/25G/40G Ports & VSU Virtualization - Ruijie Switch For Enterprise Networks

The Ruijie RG-S6120-20XS4VS2QXS-L is a next-generation 10G/25G/40G Layer 3 managed switch designed for enterprise core and aggregation networks, offering high-speed connectivity, advanced virtualization, and robust security.

Key Features & Benefits

Multi-Speed Port Flexibility

20×10G SFP+ ports (compatible with 1G/2.5G)
4×25G SFP28 ports (backward-compatible with 10G)
2×40G QSFP+ uplinks for high-bandwidth aggregation
2.56Tbps/25.6Tbps switching capacity and 570Mpps/1260Mpps forwarding rate, ensuring smooth data flow in high-traffic environments

VSU Virtualization for Simplified Management

Virtual Switching Unit (VSU) technology allows multiple switches to operate as a single logical device, reducing management complexity
50-200ms failover recovery ensures minimal downtime during link failures

Enterprise-Grade Reliability & Security

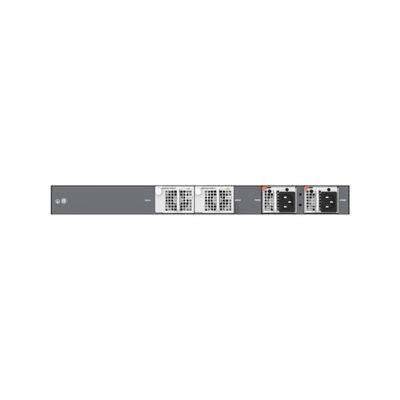

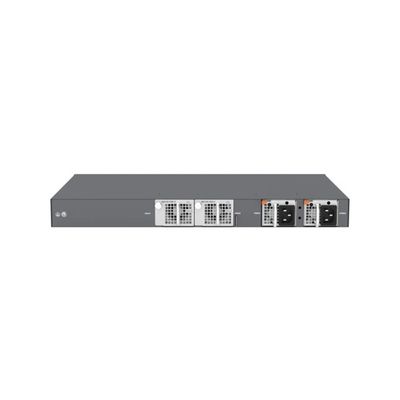

1+1 redundant power supplies & hot-swappable fans for continuous operation
Dual-Boot flash storage prevents system crashes due to firmware corruption
CPP/NFPP security protects against DDoS attacks and unauthorized access
IPv6 ACL & hardware-based encryption for secure network segmentation

Advanced QoS & Energy Efficiency

8-priority queues per port with SP/WRR/DRR scheduling for optimized traffic handling
Energy-efficient design with adaptive fan speed control, reducing power consumption to 70W max

Technical Specifications

Parameter	Details
Ports	20×10G SFP+, 4×25G SFP28, 2×40G QSFP+
Switching Capacity	2.56Tbps/25.6Tbps
Forwarding Rate	570Mpps/1260Mpps
VLAN Support	4K VLANs, Private VLAN, Super VLAN
Management	CLI, Web, SNMP, RMON, USB backup
Power Consumption	≤70W (full load)
Dimensions	440×330×43.6mm (1RU)

Ideal Use Cases

Enterprise Core/Aggregation - High-density 10G/25G connectivity

Data Center Edge - Scalable virtualization with VSU

Campus Networks - Secure, low-latency traffic handling
