High-Performance 48-Port 10G 100G Ruijie Switch With VXLAN/EVPN For Data Centers

Large Image : High-Performance 48-Port 10G 100G Ruijie Switch With VXLAN/EVPN For Data Centers

Product Details:

Brand Name:	Ruijie
Model Number:	RG-S6120-48XMG4VS2QXS-UP-H

Contact Now

High-Performance 48-Port 10G 100G Ruijie Switch With VXLAN/EVPN For Data Centers

Description

Switching Capacity:	176Gbps	Number Of Ports:	48
Humidity:	10% To 90% (non-condensing)	Security Features:	Port Security, MAC Address Filtering, Access Control Lists
Port Type:	10/100/1000Base-T	Vlan Support:	IEEE 802.1Q
Power Consumption:	Max. 60W	Power Supply:	AC 100-240V, 50/60Hz
Forwarding Rate:	130.95Mpps	Operating Temperature:	0°C To 45°C
Model:	RG-S5750-H	Management Interface:	Console, Telnet, SSH, SNMP
Weight:	3.2kg	Dimensions:	440mm X 44mm X 220mm
Highlight:	High Performance 100G Ruijie Switch , 48-Port 100G Ruijie Switch , VXLAN 100G Ruijie Switch

High-Performance 48-Port 10G & 100G Ruijie Switch With VXLAN/EVPN For Data Centers

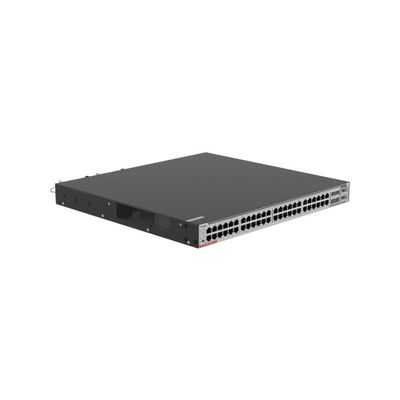

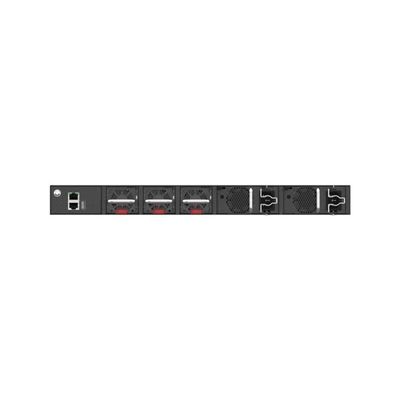

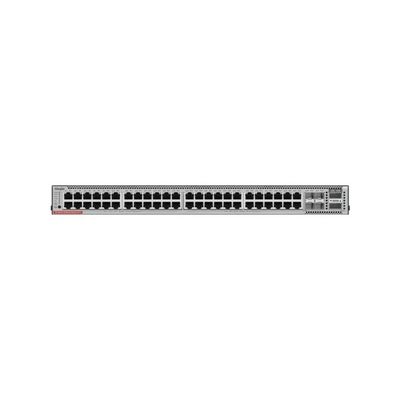

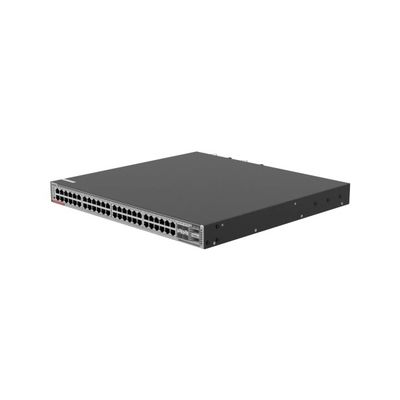

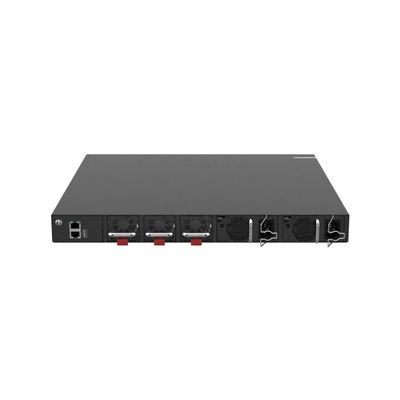

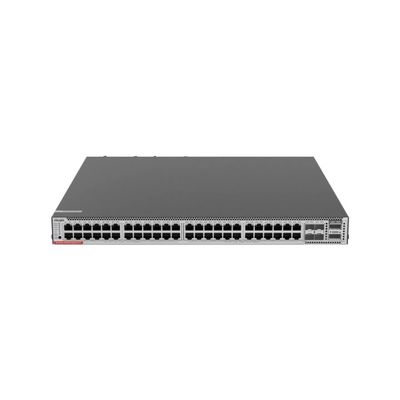

The Ruijie RG-S6120-48XMG4VS2QXS-UP-H is a next-generation data center switch designed for high-speed, low-latency, and scalable networking. Featuring 48x 10G SFP+ ports, 4x 40G QSFP+ uplinks (expandable to 100G), and 2x 100G QSFP28 ports, this switch delivers ultra-high bandwidth for modern cloud, virtualization, and storage environments.

Key Features & Benefits

High-Density 10G/40G/100G Connectivity - Ideal for server access, spine-leaf architecture, and enterprise core networks.
Advanced Data Center Features - Supports VXLAN, EVPN, and RoCE (RDMA over Converged Ethernet) for efficient network virtualization and NVMe storage acceleration.
Enterprise-Grade Reliability - Dual hot-swappable power supplies, MLAG redundancy, and smart cooling ensure 99.999% uptime.
SDN & Cloud-Ready - Compatible with OpenFlow, telemetry, and Ruijie cloud management for automated, scalable operations.
Enhanced Security & QoS - Includes ACL, port isolation, and traffic prioritization for secure, optimized performance.

Technical Specifications (Summary)

Specification	Details
Ports	48x 10G SFP+, 4x 40G QSFP+ (breakout to 100G), 2x 100G QSFP28
Switching Capacity	Up to 2.56 Tbps
Forwarding Rate	960 Mpps
Redundancy	Dual power supplies (1+1), fan redundancy
Virtualization	VXLAN, EVPN, MLAG
Management	CLI, Web UI, SNMP, Cloud (RIIL), OpenFlow
Power Efficiency	IEEE 802.3az (Energy Efficient Ethernet)

Ideal Use Cases

Cloud Data Centers (VXLAN/EVPN for multi-tenant networks)
High-Frequency Trading (HFT) & Financial Networks (RoCE for ultra-low latency)
AI/ML & Storage Clusters (High-throughput 100G connectivity)
Enterprise Core Networks (MLAG for seamless failover)

This Ruijie data center switch combines cutting-edge performance, scalability, and reliability, making it a future-proof choice for demanding IT environments.
