High-PoE++ 30W Ports 10G Uplink - Smart Cloud-Managed Ruijie Switch For Enterprise

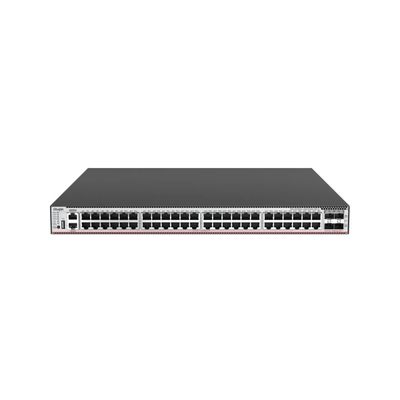

Large Image : High-PoE++ 30W Ports 10G Uplink - Smart Cloud-Managed Ruijie Switch For Enterprise

Product Details:

Brand Name:	Ruijie
Model Number:	RG-S5760C-48GT4XS-HP-X

Contact Now

High-PoE++ 30W Ports 10G Uplink - Smart Cloud-Managed Ruijie Switch For Enterprise

Description

Power Supply:	AC 100-240V, 50/60Hz	Model:	RG-S5750-H
Port Number:	48	Security Features:	802.1X, ACL, IP Source Guard
Port Speed:	10/100/1000Mbps	Vlan Support:	Yes
Redundancy Technology:	VRRP, STP, RSTP, MSTP	Switching Capacity:	176Gbps
Management Interface:	Console, Telnet, SSH, Web	Mac Address Table Size:	16K
Buffer Memory:	4MB	Layer:	Layer 2+
Forwarding Rate:	130.95Mpps	Poe Support:	Yes
Highlight:	30W Ports Ruijie Switch , Cloud Managed PoE++ 30W Ruijie Switch , Enterprise Ruijie Switch

High-PoE++ 30W Ports & 10G Uplink - Smart Cloud-Managed Ruijie Switch For Enterprise

The Ruijie RG-S5760C-48GT4XS-HP-X is a high-performance 48-port Gigabit PoE++ switch designed for enterprise and campus networks requiring high-power PoE delivery, 10G uplinks, and intelligent cloud management. Ideal for IP cameras, wireless APs, VoIP systems, and high-density access layers, this switch combines robust power, scalability, and advanced security for modern business networks.

Key Features & Benefits

High-Power PoE++ (IEEE 802.3bt) - Delivers 30W per port (total 740W PoE budget) to support power-hungry devices like PTZ cameras, Wi-Fi 6 APs, and IoT endpoints.
10G Uplink Scalability - Features 4x 10G SFP+ ports for high-speed backbone connectivity, eliminating bottlenecks in enterprise or data center environments.
Smart Cloud Management - Supports Ruijie Cloud (RIIL), enabling remote monitoring, AI-driven diagnostics, and automated troubleshooting for simplified IT operations.
Enterprise-Grade Security - Includes ACL, DHCP Snooping, IP Source Guard, and 802.1X authentication to prevent unauthorized access and network attacks.
VSU Virtualization Technology - Allows stacking multiple switches as a single logical device, improving redundancy and simplifying management.

Technical Specifications (RG-S5760C-48GT4XS-HP-X)

Category	Specifications
Ports	48x 10/100/1000BASE-T (PoE++), 4x 10G SFP+
PoE Budget	740W (IEEE 802.3af/at/bt)
Switching Capacity	256Gbps
Forwarding Rate	96Mpps
Security	ACL, Port Security, RADIUS/TACACS+, SSH/HTTPS
Management	Web GUI, CLI, SNMP, Cloud (RIIL), VSU Stacking
Power Supply	Dual hot-swappable PSUs (optional redundancy)
Cooling	Smart fan with energy-saving mode

Why Choose This Ruijie Switch?

Future-Proof Networking - Supports IPv6, SDN-ready (OpenFlow), and VSU for easy expansion.
Energy Efficient - Dynamic power adjustment reduces operational costs.
Reliable for 24/7 Operations - Redundant power and fan options ensure maximum uptime.

Ideal for enterprise offices, smart campuses, and mid-sized data centers, the Ruijie RG-S5760C-48GT4XS-HP-X provides the perfect balance of power, speed, and intelligence for next-gen networks.
